KNX vs BACnet in Buildings: Rooms Versus Plant

KNX controls rooms and BACnet controls plant. See how group addresses differ from BACnet objects, how each is secured, and why hotels and offices run both.

4 minute readUpdated

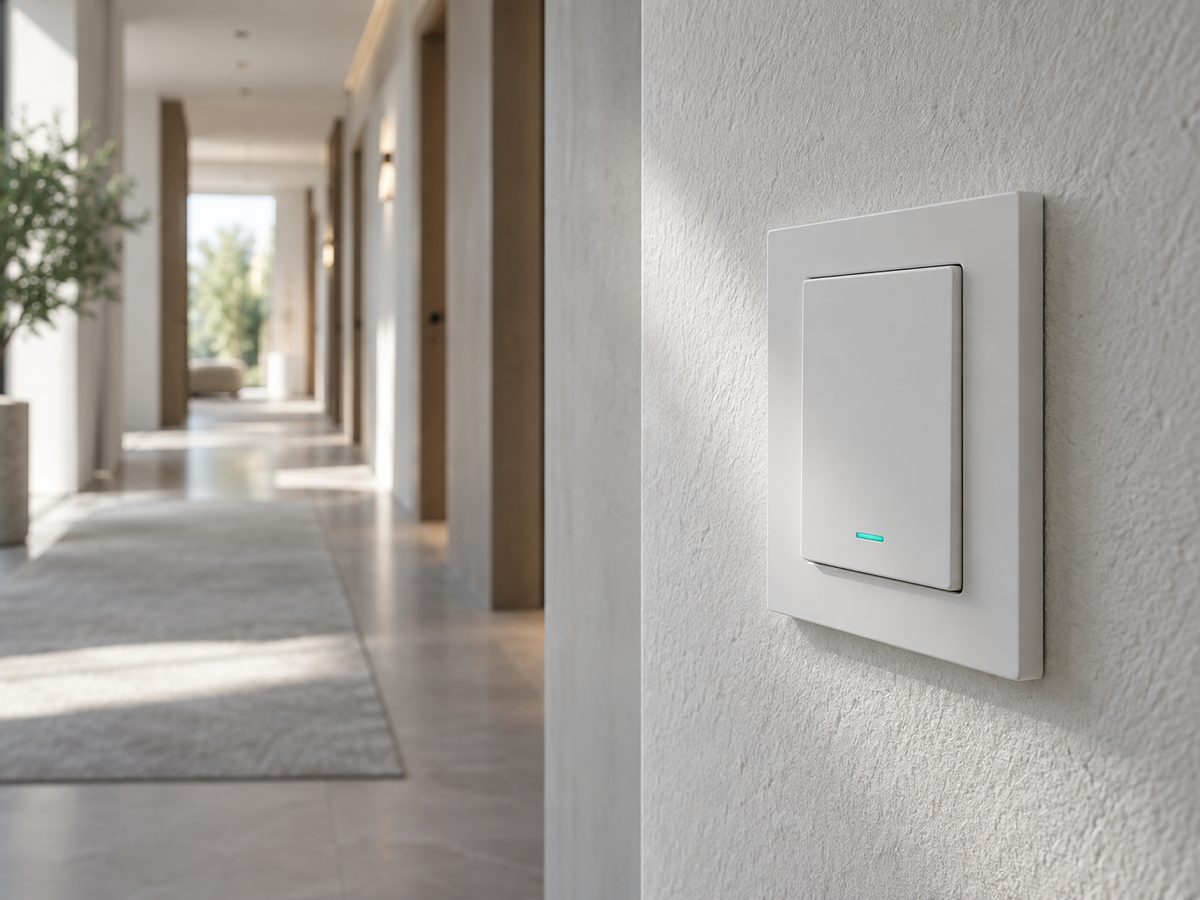

A white KNX smart wall switch panel on a light plaster wall

KNX is strongest at the room, BACnet at the plant. Reading both gives rooms and the plant that serves them in one view.

What Each Was Built For

KNX targets room and building control: lighting, blinds, heating and presence, with devices sharing state through group addresses on a bus. BACnet targets building management: chillers, air handlers and the controllers that run them.

How Data Is Identified

A KNX group address such as 1/2/5 has no name of its own. The ETS project that designed the installation holds the names and datapoint types. A BACnet object carries its own type, properties and units, and can describe itself on the network.

Security Posture

KNX IP is unsecured by default, and KNX Secure adds encryption and authentication where the installation supports it. Classic BACnet/IP is also unauthenticated in practice, because its optional network security was rarely implemented, and BACnet/SC adds secure connections on devices that support it. In both cases, network segmentation matters.

Why Buildings Run Both

Hotels, offices and campuses commonly put KNX in rooms and BACnet in plant rooms. The questions that matter, such as why a floor is overcooled or which rooms are empty but conditioned, need both datasets.

Common Questions

Is KNX or BACnet better for a building?

Neither is better overall because they target different layers. KNX is strongest for room control such as lighting, blinds and heating, while BACnet is strongest for plant such as chillers and air handlers. Large buildings often use KNX in rooms and BACnet in plant rooms, then read both into one system.

Can KNX and BACnet exchange data?

Yes, through a gateway that maps KNX group addresses to BACnet objects, or by reading both into a platform that normalizes them. A gateway needs the ETS project for names and datapoint types, and a platform avoids maintaining the mapping inside a separate box.
