KNX Integration

Listen to KNX group telegrams over KNX IP, map group addresses from your ETS project, and control rooms from one place.

Standard
ISO/IEC 14543-3, EN 50090
Medium
Twisted pair (TP), KNX IP, KNX RF
Topology
Line and area bus, linked by couplers
Data Model
Group addresses (for example 1/2/5) carrying typed datapoints (DPT)

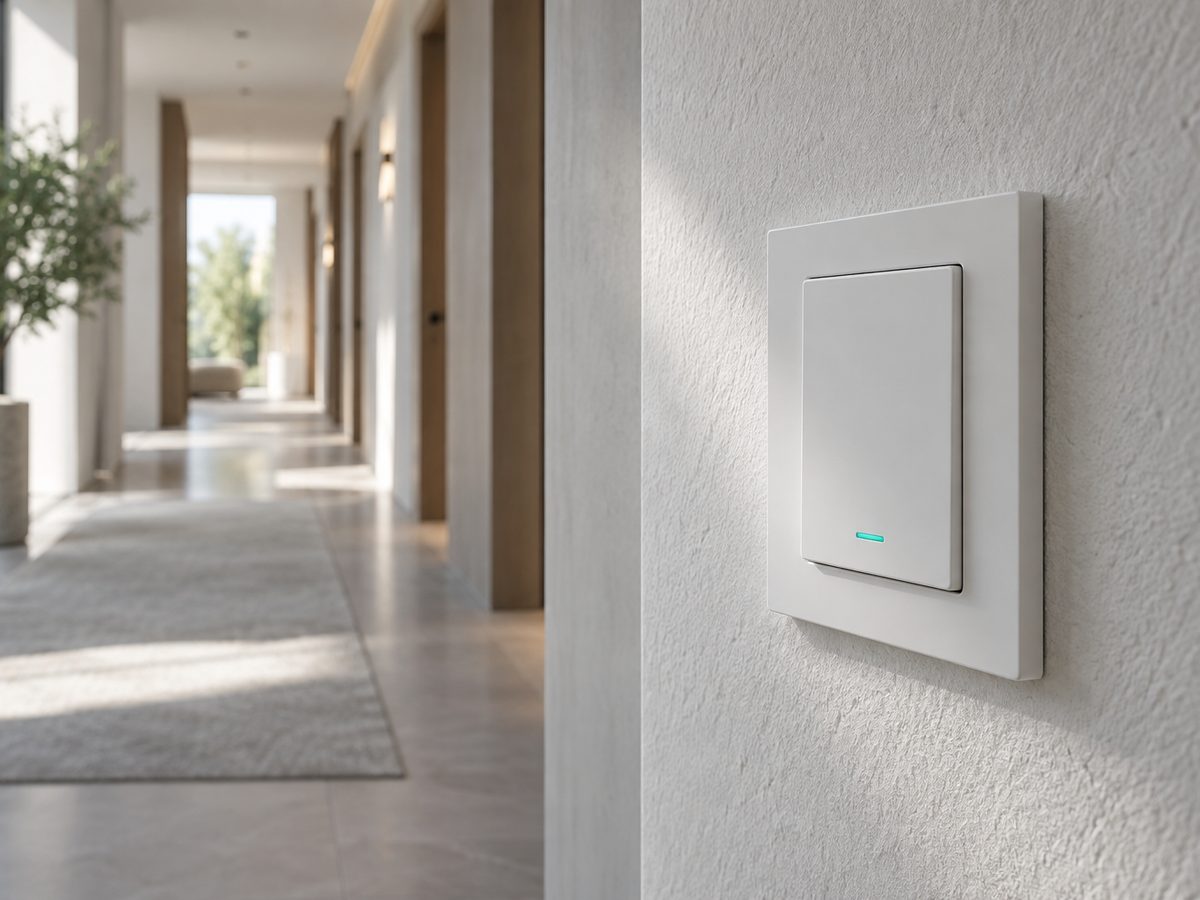

A white KNX smart wall switch panel on a light plaster wall in a hotel corridor

What KNX Is

KNX is the open standard for room and building control: lighting, blinds, heating and presence. Devices share state by sending telegrams to group addresses. A group address has no meaning on its own, so the ETS project that designed the installation is the real source of truth for names and data types.

Native Address

Group address 1/2/5
DPT 9.001
Room 214, temperature
KNX IP tunnelling

Node

Hotel > Level 2 > Room 214 > Air Temperature

23.5°C

How IoTServa Connects KNX

Import the ETS Project

Load the exported ETS project so group addresses arrive with their names, locations and datapoint types already attached.

KNX IP Tunnelling and Routing

Connect through a KNX IP interface or router. What you see depends on the interface or router's position and filter tables, so confirm it forwards the group addresses you need.

Read and Command

Read switch, dim, blind and temperature values, and send commands back to the same group addresses.

Scenes and Schedules

Run time-based and rule-based actions from the platform, sending only the commands that are needed.

Typical Jobs

  • Hotel and residential room status
  • Lighting and blind schedules across a building
  • Energy reporting from KNX meters
  • Bridging KNX into a wider BMS or dashboard

Plan for These

  • Without the ETS project you only see numbers. Keep the exported project with the site records.

  • KNX IP interfaces allow a limited number of simultaneous tunnels. Plan which one IoTServa uses.

  • Do not flood the bus. Prefer listening to reading, and write sparingly.

Works Alongside the Others

A site rarely runs a single protocol. The same project can read all eight.

KNX Questions

Can IoTServa read KNX without the ETS project?

It can, but you will only see raw group addresses and numbers. The ETS project export is what turns them into named, typed points with locations, so keeping the exported project with the site records is strongly recommended before a KNX pilot begins.

Does IoTServa work over KNX IP?

Yes. It connects through a KNX IP interface or router using tunnelling or routing. Interfaces allow a limited number of simultaneous tunnels, so plan which interface IoTServa uses, and prefer listening to reading and writing sparingly so the bus is not loaded.

What is a KNX group address?

A group address, written like 1/2/5, is the shared address that KNX devices use to send and receive telegrams on the bus. It carries no name or unit of its own. The names and datapoint types come from the ETS project that configured the installation, so reading KNX meaningfully needs that project export.
